8. Service in Kubernetes

What is a service?

• A service in k8s is a networking abstraction that defines a logical set of pods and a permanent policy by which to access them.
• K8s pods are ephemeral(short lived) , they can restart, scale or crash due to which IP address keeps on changing.
• Service solves this problem.
• Suppose in our ngnix-deployment we have 3 pods (replicas=3):

nginx-deployment

Pod A -> 10.244.0.5
Pod B -> 10.244.0.6
Pod C -> 10.244.0.7

• Now let's say another application want to call nginx. Can it use 10.244.0.5?. No, as pods are ephemeral.
• As soon as you delete pod A, it scales back up with different IP.
• Client needs a stable endpoint, if it using the old point then it the IP changes it won't be able to access the application.
• A service groups Pods using labels and provides a stable way to reach them.
• K8s continuously tracks pods matching the service selector and updates the backend endpoints.
• With service:

Client
   ↓
Service
   ↓
Pod A
Pod B
Pod C

Types of service:

1. ClusterIP : For internal communication
2. NodePort: Expose outside cluster
3. LoadBalancer: Cloud load balancer
4. ExternalName: External DNS alias
5. Headless: Direct pod discovery

• We will focus on clusterIP for now as all other types are based off it.
• ClusterIP is the default service type.

Steps

1. Verify the current deployment:

• We should already have a deployment with replicas 3 . Refer: deployment-in-kubernetes
• Run the command kubectl get pods -o wide to verify and see IP details.

2. Examine the labels

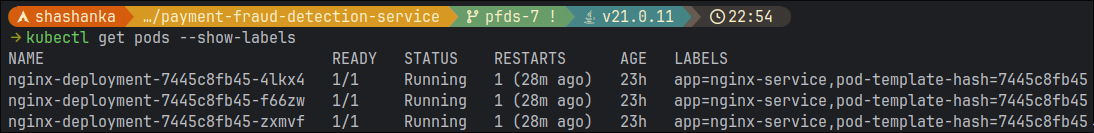

• Run : kubectl get pods --show-labels
• Service use labels to find the pods, not pod names.
• Labels are the mechanism K8s uses for selecting groups of objects.

3. Creating Service

• As with pods and deployments, we need to create a yaml file.

apiVersion: v1
kind: Service

metadata:
  name: nginx-service

spec:
  selector:
    app: nginx-service

  ports:
    - port: 80
      targetPort: 80

  type: ClusterIP

• To create the service we can run:

kubectl apply -f kubernetes/nginx-clusterip-service.yml

4. Understanding the fields

• metadata.name - Name of the service. This creates a DNS nginx-service inside the cluster.
• spec.selector - This tells the service which pods it needs to manage. The value app=nginx means that every pods with label app=nginx belong to the service.
• spec.ports.port - This defines the port of the service. Clients will call nginx-service:80 instead of hardcoded IP of the pod.
• spec.ports.targetPort - This defines to which port of the pod the traffic should route to.

5. Observing the service details

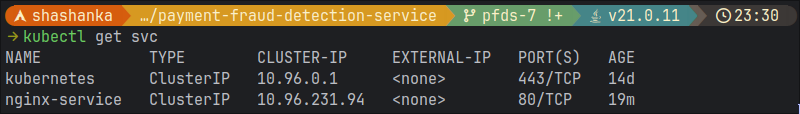

• Run the command kubectl get svc to see IP details.
• This is a virtual IP provided by k8s. Client connect to this stable IP while k8s forwards traffic to matching Pods.

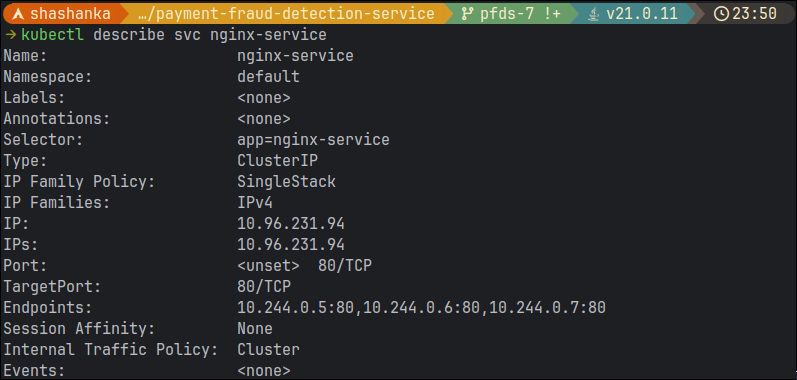

• Next, we can describe the service using the commands kubectl describe svc nginx-service.
• In the above image we can see:
  • Selector : app=nginx
  • Endpoints: 10.244.0.5:80,10.244.0.6:80,10.244.0.7:80
• The service discovered the pods through labels and built a backend endpoint list.
• K8s maintains these endpoints mappings automatically.

6. Dynamic endpoint update

• If we delete a pod from our deployment using kubectl delete pods nginx-deployment-7445c8fb45-4lkx4.
• Then, describe the service kubectl describe svc nginx-service.
• We will see that endpoints have changed automatically.
• This shows that Service tracks labels, not Pod identities.

7. DNS Discovery

• Inside K8s every service gets DNS.
• We can run a pod with busybox container for testing this

kubectl run test-client --image=busybox:1.36 -it --rm -- sh

• Now inside the pod run nslookup. nslookup nginx-service
• We should get something like:

Name:   nginx-service.default.svc.cluster.local
Address: 10.96.231.94

• A service gets a stable DNS name and clusterIP specifically so clients don't need to know Pod IPs.
• From the container if we do wget -qO- http://nginx-service or wget -qO- http://10.96.231.94 we should see the nginx welcome html returned.

Note: Requests sent to the service are distributed across backend Pods. ClusterIP services provide built in load balancing among healthy pods.

Service vs Deployment

Deployment	Service
Manages Pods	Exposes Pods
Scaling	Networking
Rollouts	Service Discovery
Self-healing	Load Balancing
